Refactoring

The article Refactoring Automated Functional Test Scripts with TestWise introduces the ‘page objects’ and covers the refactoring step by step. It is highly recommended to read it or the Practical Web Test Automation book first.

Refactoring has been widely used in programming, and its practices are regarded as one of the most important advancements in software development in recent decades. Test refactoring applies the code refactoring principals to test scripts. Now with TestWise, you can perform test refactorings with ease. For users with programming knowledge, some of the practices may be familiar; For those who haven’t had programming experiences, don’t worry, it is easier than your thought, with TestWise.

Extract to Function
Move to Helper
Move
Extract to Page Function
Introduce Page Object
Copy Page File
Rename

Extract to Function

Motive: There are test steps that are performing common operations such as Log In, and User Sign Up. You want a simple way to reuse them.
Outcome: The selected test steps are extracted to a function and moved to a helper file, where they can be shared by all test cases.
Benefits: More readable scripts; Less duplication; Test scripts reuse.

Steps:

Identify the test steps

For example, here is a test case containing user login test steps.
```
it "[124] Sample test case name" do
  # steps before ...
  enter_text('username', 'john')
  enter_text('password', 'foobar')
  click_button('Login')
  # steps after ...
end
```
I want to extract three login steps (starting with enter_text('username', ...) into a reusable function.
Select the identified test steps

If there is only one test step, then you may skip this step. TestWise will take the current line as selected test step.

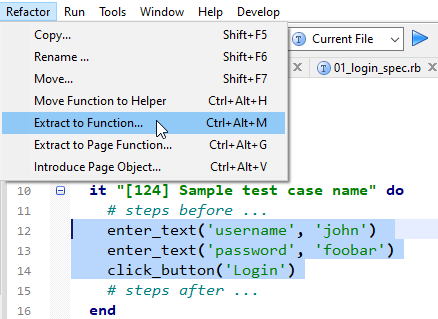

Invoke the refactoring

Select the Extract to Function menu under ‘Refactor’ Menu or use the shortcut key (Ctrl + Alt + M).

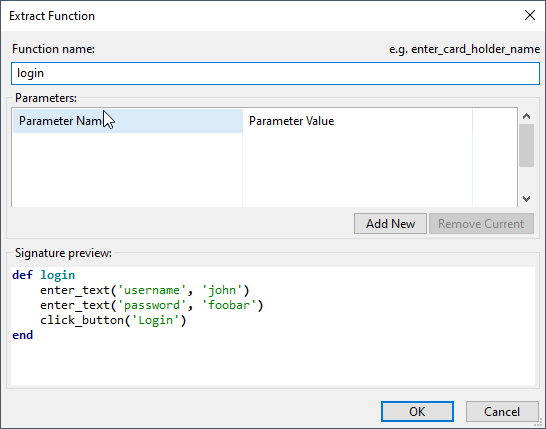

Enter function name in the Extract Function dialog

You will get:

def login
  enter_text('username', 'john')
  enter_text('password', 'foobar')
  click_button('Login')
end

it "[124] Sample test case name" do
  # steps before ...
  login
  # steps after ...
end

Move to Helper

Motive: You want a locally defined function in a test script to be accesible by all test scripts
Outcome: The function defintion is moved to test_helper.rb
Benefits: The function is now reusable for all test scripts, possible auto completion if IDE supports

Steps:

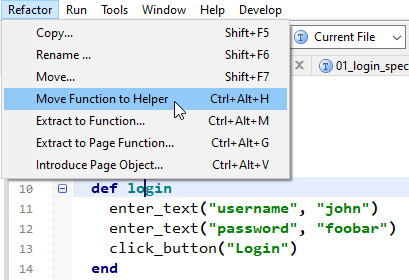

Move caret to the function name and invoke the refactoring

Select Extract to Function menu under ‘Refactor’ Menu or use the shortcut key (Ctrl + Alt + H).

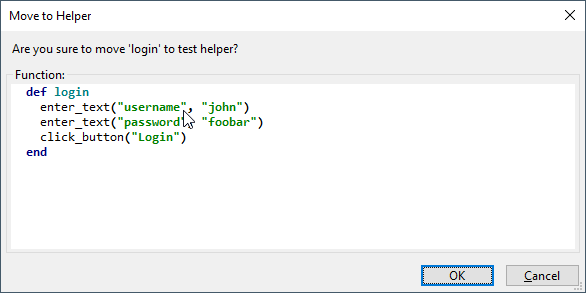

Confirm

Click OK button, the login function will be moved to test_helpe.rb, if you follow TestWise convention.

# Now in test_helper.rb
def login
  enter_text('username', 'john')
  enter_text('password', 'foobar')
  click_button('Login')
end

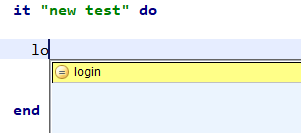

Now this function is available to all test scripts. For example, to use it in a new test, type lo then press Ctrl + Space, which will show matching helper functions for you to select.

Move

Motive: You use the same set beginning or ending test steps in multiple test cases.
Outcome: Move the common test steps into the shared sections that will run before/after each test case.
Benefits: Script reuse, concise and show the purpose of the test case better.

Steps:

Select the common steps

The steps are common to multiple test cases in the same test script file, just select one instance of them.

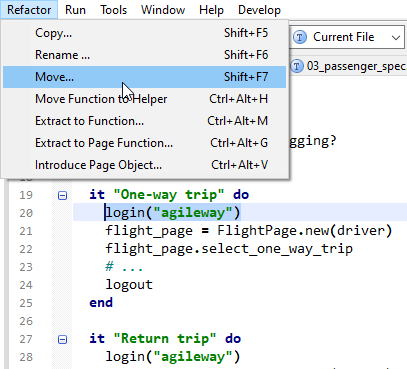

Invoke refactoring

Either from Move under Refactor, or shortcut key (Shift + F7).

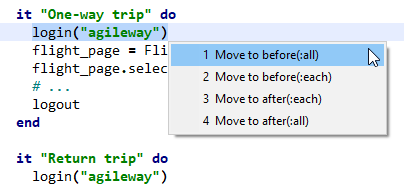

Select target

A context menu will be shown (next to the selected test steps), choose the target scope.

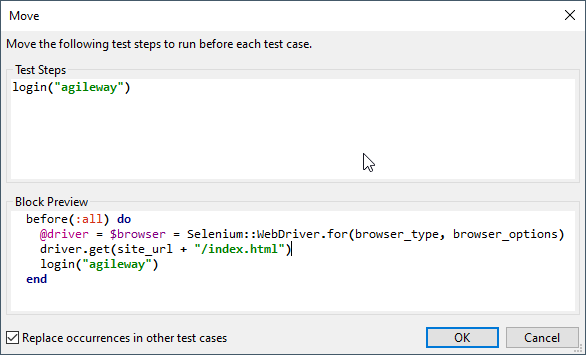

Preview the refactoring

Preview the change to the target, and check “Replace occurences in other test cases” checkbox if it applies to more than one test cases.

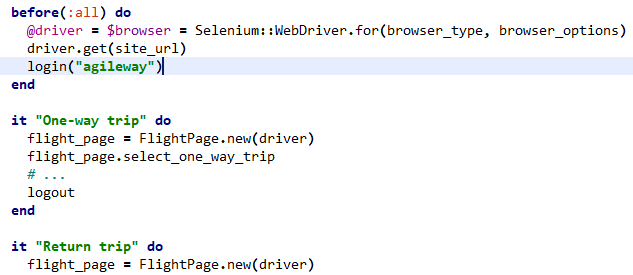

Here is what the test script looks like after the refactoring:

Extract to Page Function

Motive: You have recorded or entered some test steps, and noticed duplications. As time goes by there will be more duplications which will lead to hard-to-maintain test scripts.
Outcome: The selected test steps are extracted to a function in a page class which will be shared by all the test scripts. The page class provides the context, which makes maintenance easier.
Benefits: More readable code by expressing operations in DSL Test Scripts Reuse; More immune to application changes; Enable other convenient operations to auto-complete in TestWise.

Steps:

Identify the test steps on a web page

Quite often, we hear people saying something like “On homepage, click sign up link to get to the signup page, then enter preferred login …”.

In this example, we will try to extract operations to SignUpPage. In the sample script below, line 3 to line 8 are operations on the sign up web page.
```
it "[124] signup a new user" do
  logout # a function
  click_link 'Signup'
  enter_text("login", "John")
  enter_text("password", "foo")
  enter_text("passwordConfirmation", "foo")
  select_option("country", "Australia")
  click_button("Submit")
  # steps after ...
end
```
Move the caret to first operation on wanted page

In this case, it is enter_text(“login”, “John”).

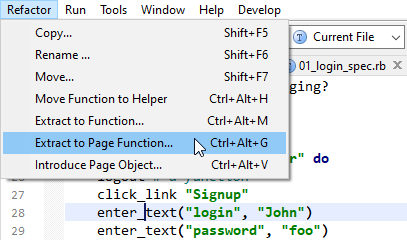

Invoke ‘Extract Page’ refactoring

Either from the menu

Or use shortcut key (Ctrl + Alt + G).

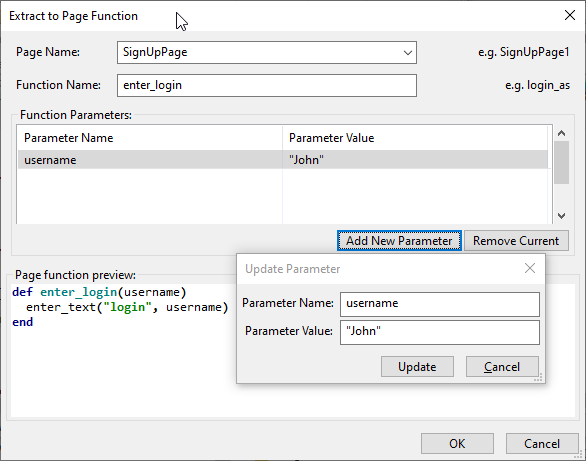

Enter the page and operation names

It is like filling “on ___ page do ___”. In our example, we fill ‘SignUpPage’ and ‘enter_login’.

Please note the convention here, Camel Case for page names, and lower case (joined with _) as operation (or function) names.

Also I added a function parameter username to replace the text “John”, this will provide more flexibility for the test scripts.

The test script is now changed to:
```
it "[124] signup a new user" do
    logout # a function
    click_link 'Signup'
    sign_up_page = SignUpPage.new(driver)
    sign_up_page.enter_login("John")
    enter_text("password", "foo")
    # more ...
end
```
And a new file sign_up_page.rb is created under pages folder with the following content:
```
require File.join(File.dirname(__FILE__), "abstract_page.rb")

class SignUpPage< AbstractPage

 def initialize(driver)
   super(driver, "") # <= TEXT UNIQUE TO THIS PAGE
 end

 def enter_login(username)
   enter_text("login", username)
 end
end
```
Rerun the test case.

Continue refactorings to remaining operations

The complete refactored test case:

it "[124] signup a new user" do
    logout # a function
    click_link 'Signup'
    sign_up_page = expect_page SignUpPage
    sign_up_page.enter_login('john')
    sign_up_page.enter_password('foo')
    sign_up_page.select_country('Australia')
    sign_up_page.submit
    # steps after ...
end

In SignUpPage (file: sign_up_page.rb)

class SignUpPage< AbstractPage

  def initialize(driver)
   super(driver, "") # <= TEXT UNIQUE TO THIS PAGE
  end

  def enter_login(username)
   enter_text("login", username)
  end

  def enter_password(pwd)
    enter_text("password", pwd)
    enter_text("passwordConfirmation", pwd)
  end

  def select_country(country)
    select_option("country", country)
  end

  def submit
    click_button("Submit")
  end
end

Introduce Page Object

Motive: You want to use one of already defined page classes in test script
Outcome: A new page object is declared in the test script
Benefits: Efficient, page class discovery and avoid typos

Steps:

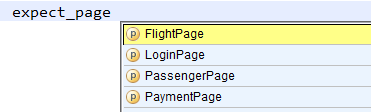

Type ep followed by a Tab in a test script

A list of defined page class name will be shown in a pop up for selection.
Select one page class.

A page object is declared in the test script, flight_page = FlightPage.new(driver).

Copy Page File

Motive: You want to create a similar page class like an existing one
Outcome: A new page class is created with same content, but with correct class name
Benefits: Efficient

Steps:

Open an existing page file

The page you want to copy from.

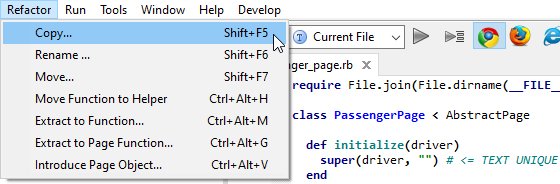

Invoke the refactoring

Either from the ‘Refactor’ menu or simply press Shift + F5.

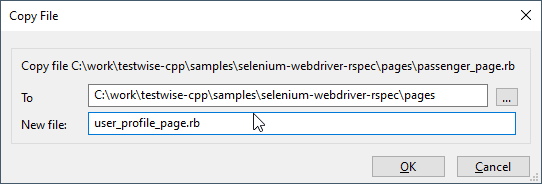

Enter new file’s name

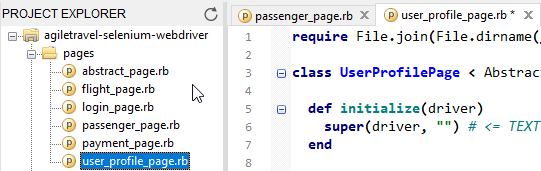

A new page (user_profile_page.rb) is created with the content from the copied page, except the page name which is based on user-entered new page file.

Rename

Motive: The terminology or application changes make names used in existing test cases incorrect or lead to misunderstanding. Or just find a better name
Outcome: The terms used in test cases are up to date with your domain language
Benefits: More readable test cases; No error-prone ‘search and replace’ in the whole projects

This refactoring can also be further classified into the following sub ones.

Rename Page Class
Rename Function Name
Rename Local Variable
Rename Instance Variable
Rename Global Variable

Steps:

Identify a function name, class name, variable name

Just move the caret to the name you wish to change.
Invoke the refactoring

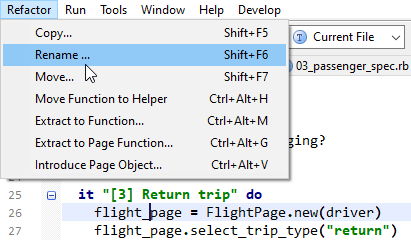

Either from the ‘Refactor’ menu or simply press Shift + F6. TestWise will analyse the script and choose appropriate sub-refactoring.

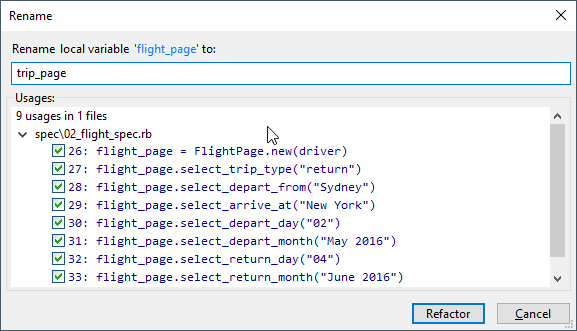

Enter the new desired name and apply

Depending on the sub-refactoring, changes will be made accordingly.

Rename Page Class

Page Class declaration and all appearances of the page class name.

Rename Function

Function declaration and all references to that function.

Rename Local Variable

All appearance of variable in that scope.

Rename Instance Variable

All appearances of the instance variable (like @username) in current file.

Rename Global Variable

All appearances of the global variable (like $SERVER_NAME) in all project files.

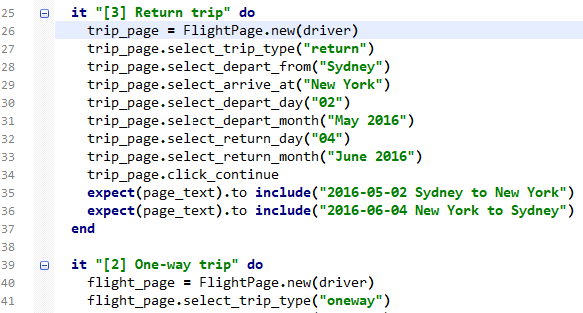

Here is what looks like after renaming a page object variable in one test case:
